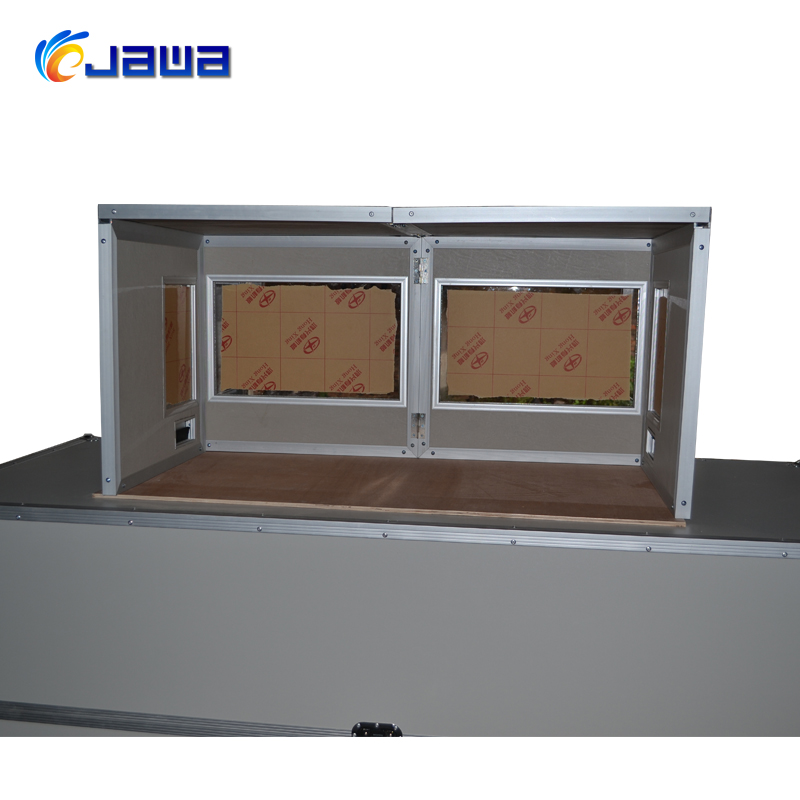

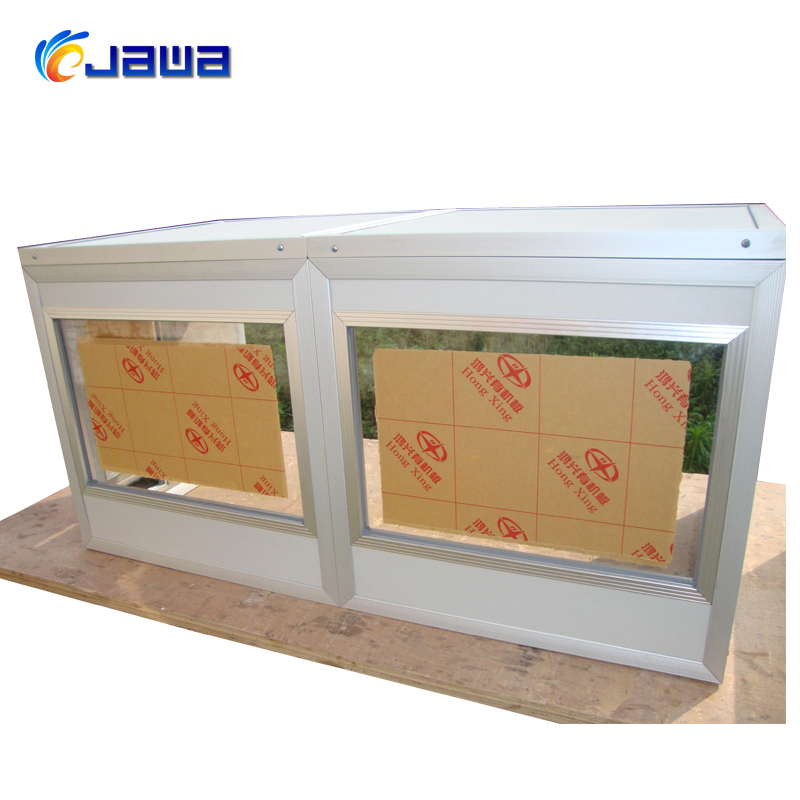

Gray portable booth 2

Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously, It provides the perfect visual and two-way audio communication between the interpreters and the participants in various meetings conferences.The light weight interpreter booths JW-TB02L01 is a light weight, modular, easy to mount interpreter booth for 2 persons .1 or 2 persons can easily build the booth without any tools. The JW-TB2L01 complies with the ISO 4043 norm for mobile interpreter booths and is equipped with table and 2 cable ducts.

Specifications
• Standard suited for 2 persons
• Standard size:W1200xD600xH600 mm
• Weight approx. 45KG
• Standard 6 panel configuration
• Extendable up to 2 persons
• Ventilation system integrated in roof panels
• Outer Materials is high density plywood coated with fire-retardant paint
• light grey color, other colors are available on demand.


Package

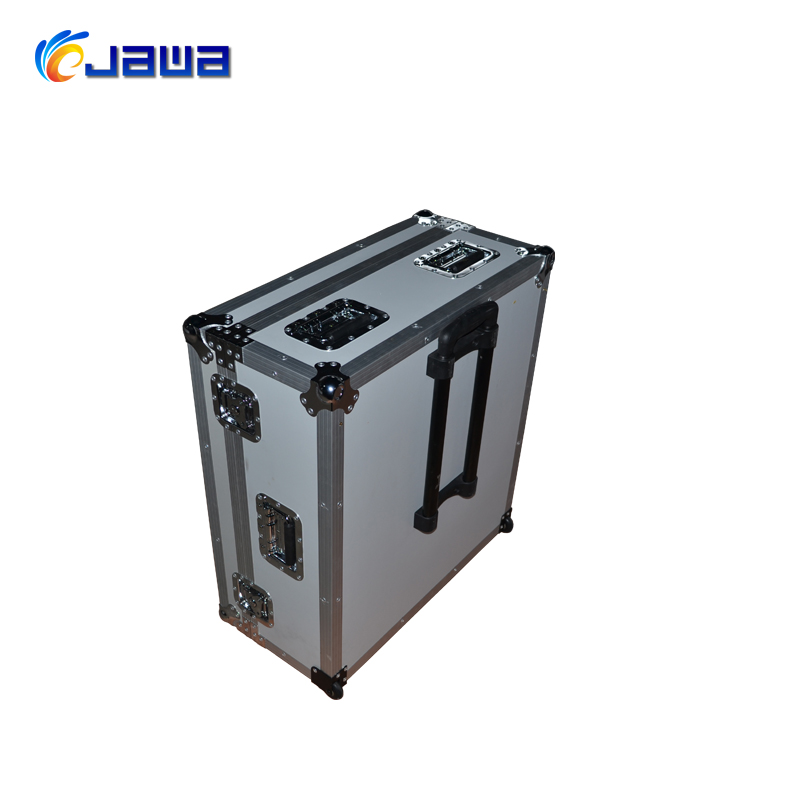

• Hard flight cases
• Dimensions :W700xD700xH35mm
• 2 swivel wheels with brake

Configuration
1. sound insulation door: Easy opening 180 angle without noise; Outward;
2. windows: Size window is more than 670*800mm (H); Ample sight space; acrylic material ( thickness 6mm; Anti-scratch; Prevent sharp light outside).
3. ventilation system: two silent ventilation system on top (optional), almost silence(< 40dB).
4. work surface: Can bear weight of all equipments
5. cable passage: Dia. 5cm
6. standard 6 wall panels(4 of which have windows with acrylic and 1 door panels), 2 roof panels .


Capacity of sound-proof
The capacity of sound proof of our booth is completely over ISO-4043 standard, at least 30 dB

Benfit
A. Easy installation, can be performed by 1-2 person
B. Very comfortable working environment
C. Clear view window (acrylic)
D. Durable build
E. The table is easy to install without using tools at all
F. Good looking and Comfortable
G. Suitable for all types for conference systems
